Plastic Pearl Cotton EPE Foam Sheet Extrusion Line Easy Operation

Name: Plastic Pearl Cotton EPE Foam Sheet Extrusion Line Easy Operation
Brand: Hongrun
Price: 47000 USD

Wholesale Plastic Pearl Cotton EPE Foam Sheet Extrusion Line Easy Operation from china suppliers

Brand Name : Hongrun

Model Number : HR-120

Certification : CE&ISO9001

Place of Origin : Shandong,China

MOQ : 1Set

Price : USD47000-65000/Set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100sets/per year

Delivery Time : 60days

Packaging Details : Export Standard Packaging

Capacity : 150-200kg/h

Application : Sheet

Screw Design : Single-screw

Products thickness : 0.8-8mm

Products width : 1000-2000

Voltage : 3 phase, 380V/50HZ

Density : 20-30 kg/M3

After-sales Service Provided : Engineers available to service machine overseas

Contact Now

Plastic Pearl Cotton Extruder Machine , Expanded EPE Foam Sheet Machine

Product Description

PE foam sheet extruder producing fine colsed -cell polyethylene foam sheet, by our unique designed screw and barrel system, using butane foaming agent, talc power or talc master batch and Anti- shrinking agent (GMS for short-surface active agent) by accumulated experience and advanced technology. PE foam and related products are made from PE resin and it is expanded and formed into shapes by being heated and extruded.and it is easy to be decompounded and enviroment friendly.

PE foam machine can make different foam sheet width and thickness according to customer requirment,meanwhile, it can also make foam sheet pipe, foam net, foam rod, foam profile and so on, through changing mould and machine parts.

Main Parameters

Parameters	Unit	Model
Parameters	Unit	HR-90	HR-105	HR-120	HR-150	HR-170
Products thickness	mm	0.5-4.0	0.5-6	0.8-8	1-12	2-16
Products width	mm	1000-1200	1000-1400	1000-1800	1000-1800	1000-1800
Installed power	kw	90	100	120	150	180
Installation Dimension	m	22x2.5x2.2	23x2.5x2.2	25x2.2x2.2	30x2.5x2.2	32x2.3x2.2
Cooling method		Wind and water
Forming ratio		20-40
Power supply		380V 50HZ 220V 60HZ 3 phase 380V50HZ 3 phase 220v 60HZ

The feature of PE foam sheet:

1. Its key function is cushion protecting and warmth reserving

2. High resilience and buoyant effect

3. Effective insulating capacity

4. Low thermal conductivity

5. Negligent absorption and water permeability

6. Non-toxic and environmental friendly

7. 100% recyclable and reusable

Applications of product

1. Nowdays it is the most popularly used for modern batch production products, especially export packing industry,including electronic,industry (such as pc computer,laptop, electronic, chips and parts, TV, air conditioner),furniture, glas sware,garments, metal parts etc.

2. PE foam products have quite a few varieties sheets for direct wrapping and to make bags, PE sheet may be coated with plastic film, craft paper and aluminum foil, it may be laminated (by electricity or LPG flame) into thick blocks, then cut then to make different containers or frames.

3. construction materials for insulation

4. educational material

5. sprots material

6. life vest etc

Plastic Pearl Cotton EPE Foam Sheet Extrusion Line Easy Operation

Our service

1. Engineers available to service machinery overseas.

2.The technical parameter can be set according to customer's requirement

3. During the cooperation period, any problem you meet, we will try our best to help you.

Product Tags:

Epe Foam Sheet Machine

Epe Foam Sheet Extruder

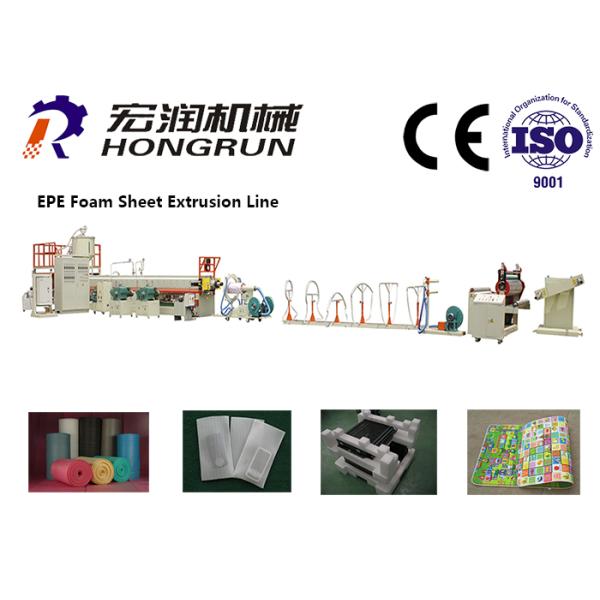

Plastic Pearl Cotton EPE Foam Sheet Extrusion Line Easy Operation Images
